Vertical Mount Liquid Level Sensor |

A vertical mount liquid level sensor has one or more floats and can be mounted vertically to the top or bottom of liquid tank or reservoir.

CLS Series Capacitive Level Sensor

The CLS Series Capacitive Level Sensor (CLS) are custom designed solutions for continuous fluid level monitoring over a wide temperature range, with calibrated and custom programmable outputs for various tank geometries.  The CLS Series is a smart sensor with onboard microcontroller designed for long-term solid-state reliability in harsh environments, providing full scale accuracy. Our patent pending & revolutionary designs can be configured in a custom length aluminum or stainless-steel housing with an aluminum, stainless-steel, PP, or PA header, and Viton seals. Compatible with fuel, oil, water, ethanol blends, diesel, urea, etc. Can meet IP67 requirements.

Thought Leadership: Hall Effect & Capacitive Level Sensors

HLS Series Hall Effect Level Sensor

The HLS Series Hall Effect Level Sensor (HLS) are custom designed solutions for continuous fluid level monitoring over a wide temperature range, with calibrated and custom programmable outputs for various tank geometries.  The HLS Series is a smart sensor with onboard microcontroller designed for long-term solid-state reliability in harsh environments, providing high-resolution and accuracy. Available in a variety of rugged packages with temperature compensated solid-state sensing elements. Our patent pending & revolutionary designs can be configured in either plastic or stainless-steel housings with PP, PA, NBR, and stainless floats as well as multiple mounting options. Compatible with fuel, oil, water, ethanol blends, diesel & other liquids. Can meet IP67 requirements.

Thought Leadership: Hall Effect & Capacitive Level Sensors

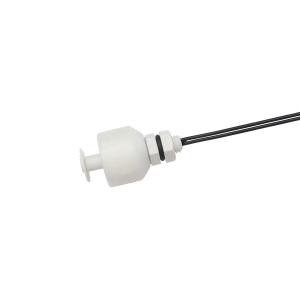

LS01 Series Liquid Level Sensor

Compact single level vertical mount LS01 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors.

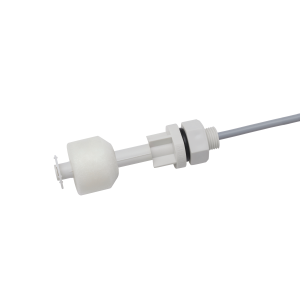

Compact single level vertical mount LS02 Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors. IP68 only up to screw in thread.

Compact stainless steel single level vertical mount LS02 (S) Series Liquid Level Sensor used in level control, detection and monitoring. High power switch option, other cables and connectors. High temperature resistance up to 120°C. IP68 only up to screw in thread.

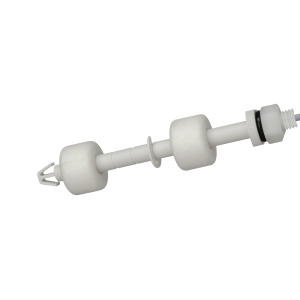

LS04 Series Liquid Level Sensor

Versatile LS04 Series Liquid Level Sensor for single, multi and continuous level control, detection and monitoring. Reservoir, tank, bottle or other container mounting configurations. Up to 6 floats, 1W-100W rated power, other cables, connectors.

R12072 Series Liquid Level Sensor

Vertical top mount R12072 Series Liquid Level Sensor snap-in design is ideal in blow or injection molded bottles. Adjustable sensing point up to 18 inches from top of bottle. Standard termination-0.25 inch open spade.

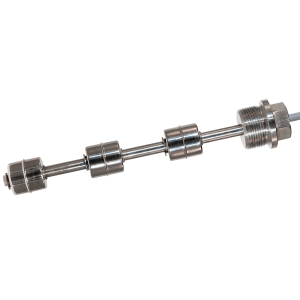

LS05 Series Liquid Level Sensor

Versatile stainless steel LS05 Series Liquid Level Sensor for single, multi and continuous level control, detection and monitoring capable of high temperature resistance up to 200°C (SS) and pressure up to 12 bar. Multiple floats with minimum 1.5” spacing, 1W-100W rated power, other cables, connectors. UL Approved.

R11774 Series Liquid Level Sensor

Snap lock mount R11774 Series Liquid Level Sensor design with integrated connector is ideal in blow or injection molded bottles. Compatible with B12450 Series Magnetic Float (sold separate).

R12406 Series Liquid Level Sensor

Vertical bottom mount R12406 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Uses separate seal grommet and contains and internal snubber resistor. Indication delay feature.

R12468 Series Liquid Level Sensor

Vertical bottom mount R12468 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Integrated o-ring seal. Float sold separate. Mates with Packard P/N 12052641.

R12481 Series Liquid Level Sensor

Vertical bottom mount R12481 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Integrated o-ring seal. Compatible with B12482 Series Magnetic Float (sold separate). Mates with Packard P/N 12052641.

R12421 Series Liquid Level Sensor

Vertical bottom mount R12421 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Uses separate seal grommet and contains and internal snubber resistor. Indication delay feature.

R12347 Series Liquid Level Sensor

Vertical bottom mount R12347 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Uses separate seal grommet and contains and internal snubber resistor. Mates with Ford P/N E57B14A464AA.

R12372 Series Liquid Level Sensor

Vertical bottom mount R12372 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Uses separate seal grommet and contains and internal snubber resistor. Indication delay feature.

R12349 Series Liquid Level Sensor

Vertical bottom mount R12349 Series Liquid Level Sensor design is ideal in blow or injection molded bottles. Uses separate seal grommet and contains and internal snubber resistor. Mates with Ford P/N E57B14A464AA.
